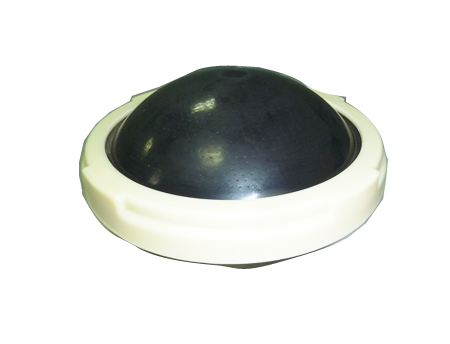

球冠型曝氣器
◆盤式曝氣器產品特點：
1．膜片采用優質進口橡膠為原料，彈性大，使用壽命長
2.氣泡直徑小，充氧效率高
3.耐結垢，抗堵塞，安裝方便
◆主要技術參數
膠片材質：EPDM/硅膠silica gel/丁腈膠NBR
托盤材質：ABS/UPVC/PP
| 規格 | φ215mm | φ260mm | φ300mm |
| 工作通氣量Working air flow (m3/h) | 1.5-3 | 2-5 | 2-8 |
| 設計通氣量Designed air flow(m3/h) | 2 | 3 | 4 |
| 服務面積Service area(m2/piece) | 0.25-0.45 | 0.35-0.65 | 0.45-0.75 |
| 氧利用率Oxygen utilization ratio(%) | >30 | >30 | >30 |
| 充氧能力Oxygenate capability(kgO2/h) | 0.13-0.35 | 0.18-0.45 | 0.25-0.5 |
| 淹沒水深Water submerged depth(m) | 4-8 | 4-8 | 4-8 |
| 理論動力效率Theoretic dynamic efficeny(kgO2/kw.h) | 6.5 | 6.5 | 6.5 |
| 阻損Drag loss(pa) | <3000 | <3000 | <3000 |
